How Dandong Pengxin Machinery Manufactures Slag Pots: Resin Sand Casting, Dual-Material Expertise, and Rigorous Quality Control

Slag pots rank among the most demanding components in steelmaking. Designed to collect, transport, and dump molten slag at temperatures exceeding 1,300 °C, these heavy vessels endure relentless thermal cycling, corrosive slag chemistry, and repeated mechanical impact. A single structural failure can cause catastrophic accidents on the mill floor.

At Dandong Pengxin Machinery Co., Ltd. — founded in 1958 in Dandong, Liaoning, China — slag pot manufacturing is built on nearly seven decades of foundry expertise. Operating across 66,000 m² of production space with 330 employees and an annual capacity approaching 100,000 tons, Pengxin supplies steel mills across North America, Europe, and Asia. This article explains how Pengxin produces slag pots using resin sand casting, covering material options in both ductile iron and cast steel, the production process, and the comprehensive quality inspection system that underpins every delivery.

The Resin Sand Casting Advantage

Resin sand casting uses synthetic resin binders — typically furan or phenolic — mixed with silica sand and an acid catalyst to form rigid, chemically bonded molds. Compared with green sand or shell molding, this process delivers:

• Tight dimensional accuracy, reducing machining allowances on large castings.
• Smooth surface finish, minimizing defects such as sand inclusion and veining.
• High mold strength, supporting the massive hydrostatic pressure from tons of molten metal.

Pengxin runs two fully automated resin sand casting lines with a combined annual output of 400,000 tons. This scale supports both single-piece custom slag pots and high-volume batch production.

Material Selection: Ductile Iron and Cast Steel

Pengxin offers slag pots in two material families, matching the grade to each mill's operating conditions.

Ductile Iron (QT500-7, QT600-3)

Ductile iron slag pots are widely used for blast furnace and moderate-temperature applications. The spheroidal graphite microstructure provides good thermal conductivity, vibration damping, and excellent castability — complex shapes with varying wall thicknesses fill reliably. Ductile iron offers a favorable cost-to-performance ratio for slag temperatures below the iron's phase-transformation range. However, its higher ductile-to-brittle transition temperature limits use in sub-zero climates or heavy-impact service.

Cast Steel (Low-Alloy Cr-Mo, Ni-Cr-Mo)

For extreme-duty cycles — basic oxygen furnace (BOF) or electric arc furnace (EAF) slag above 1,400 °C — cast steel delivers superior toughness, wider service temperature range, and higher tensile strength. Steel slag pots withstand rough craning and impact loading without brittle fracture and can be weld-repaired to extend service life. The trade-off is higher material cost and more demanding foundry control: molten steel pours at roughly 1,550–1,600 °C, requiring specialized refractory and gating design.

Pengxin's metallurgical engineers work directly with customers to recommend the optimal grade based on slag chemistry, operating temperature, crane capacity, and target campaign life.

Production Process Overview

Pattern Making and Molding

Each slag pot begins with a precision pattern — wood, aluminum, or epoxy — engineered with material-specific shrinkage allowances (1.0–1.5 % for ductile iron, 2.0–2.5 % for cast steel). Pengxin fabricates patterns and core boxes in-house. The resin sand mixture is compacted around the pattern, curing at room temperature within minutes. Mold halves are then assembled with cores to form internal cavities.

Melting, Treatment, and Pouring

Medium-frequency induction furnaces melt the charge under controlled conditions. Every heat is sampled for optical emission spectrometry (OES) to verify chemical composition before tapping. Ductile iron heats receive nodularizing treatment (Fe-Si-Mg) via tundish cover or in-mold methods. Pouring temperature and speed are tightly controlled to avoid turbulence-induced inclusions and ensure directional solidification through properly designed gating and risering.

Cooling, Shakeout, and Fettling

Large slag pots weighing several tons may cool in the mold for 24–72 hours before shakeout. After mechanical sand removal, castings proceed through riser cutting, gate removal, and surface grinding.

Heat Treatment

• Ductile iron: stress-relief annealing at 550–620 °C or normalization at 880–920 °C for higher-strength grades.
• Cast steel: normalizing and tempering (N+T) or quench and temper (Q+T), typically normalizing at 900–950 °C followed by tempering at 600–700 °C.

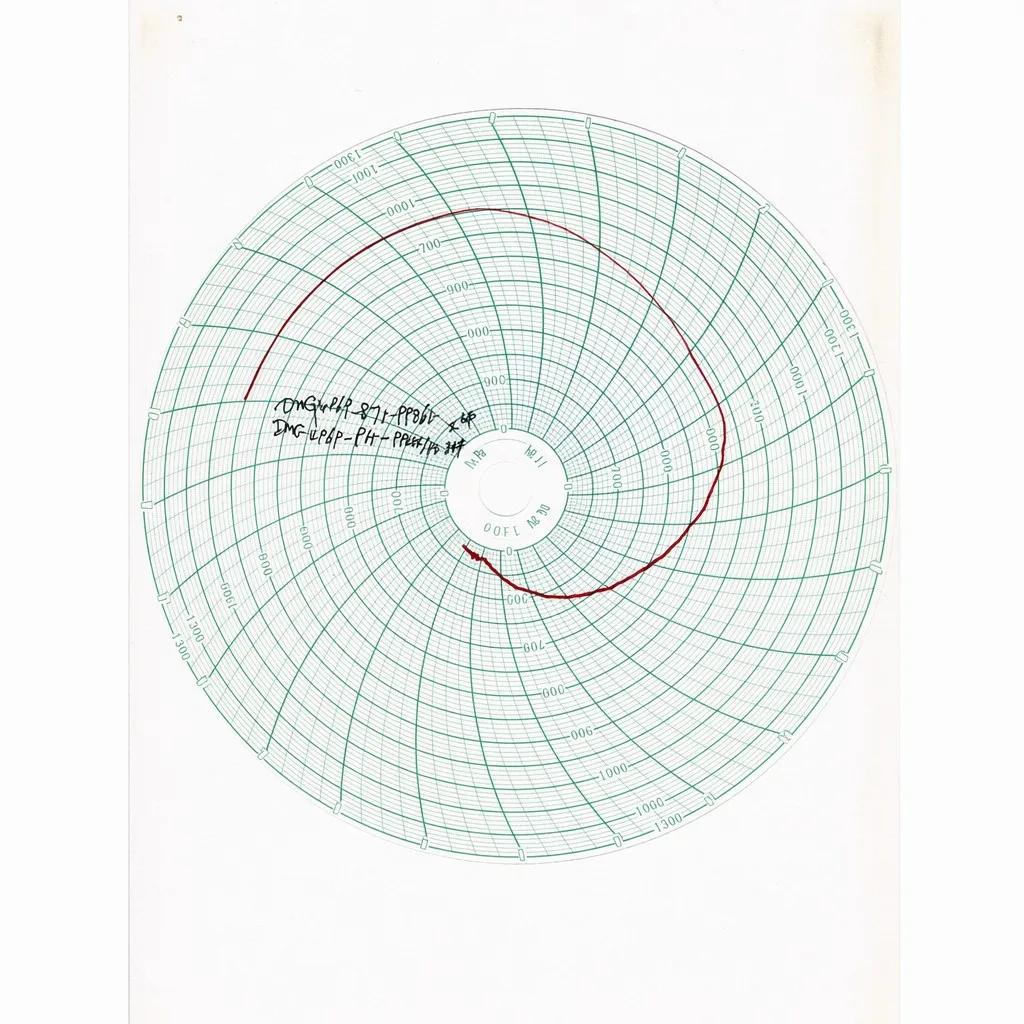

Every heat treatment cycle is digitally recorded. Temperature-time curves are archived and included in the customer's quality dossier, supporting ISO 9001 and IATF 16949 audit traceability.

Quality Inspection: Multi-Layered Assurance

Pengxin's inspection protocol leaves no room for compromise. Each slag pot passes through six checkpoints before release:

1. Visual and Dimensional Inspection

100 % visual examination for surface defects — cracks, sand inclusions, shrinkage, cold shuts. Critical dimensions (pot diameter, wall thickness, trunnion center distance, lip geometry) are verified with laser trackers, CMMs, and large-format calipers. 3D scanning provides full deviation color maps for complex contours.

2. Magnetic Particle Testing (MT)

Performed on all accessible surfaces — especially trunnion bosses, lifting eyes, and flange transitions — MT detects surface and near-surface discontinuities as fine as 0.5 mm. A magnetic field is induced in the casting; fluorescent or visible-dye particles accumulate at crack locations, providing immediate visual indication.

3. Ultrasonic Testing (UT)

While MT addresses surface flaws, UT probes internal integrity. High-frequency sound pulses transmitted into the pot wall reflect from internal discontinuities — porosity, slag inclusions, shrinkage, laminations — displayed on an A-scan screen. Pengxin's ASNT-certified technicians scan all high-stress zones per ASTM A609 or EN 12680-1, verifying wall thickness at grid points across the pot body.

4. Mechanical Properties Testing

Tensile specimens machined from test bars or cast-on coupons are tested per ASTM E8 / ISO 6892 for yield strength, ultimate tensile strength, and elongation. Charpy V-notch impact tests (ASTM E23 / ISO 148) verify toughness at specified temperatures. Brinell hardness provides a quick field-verification reference.

5. Metallographic Examination

Polished and etched specimens are analyzed microscopically. For ductile iron, nodularity, nodule count, and graphite size distribution are evaluated per ISO 945 — Pengxin consistently achieves nodularity above 90 %. For cast steel, grain size, phase distribution, and the absence of detrimental phases such as grain-boundary carbides are verified.

6. Heat Treatment Curve Traceability

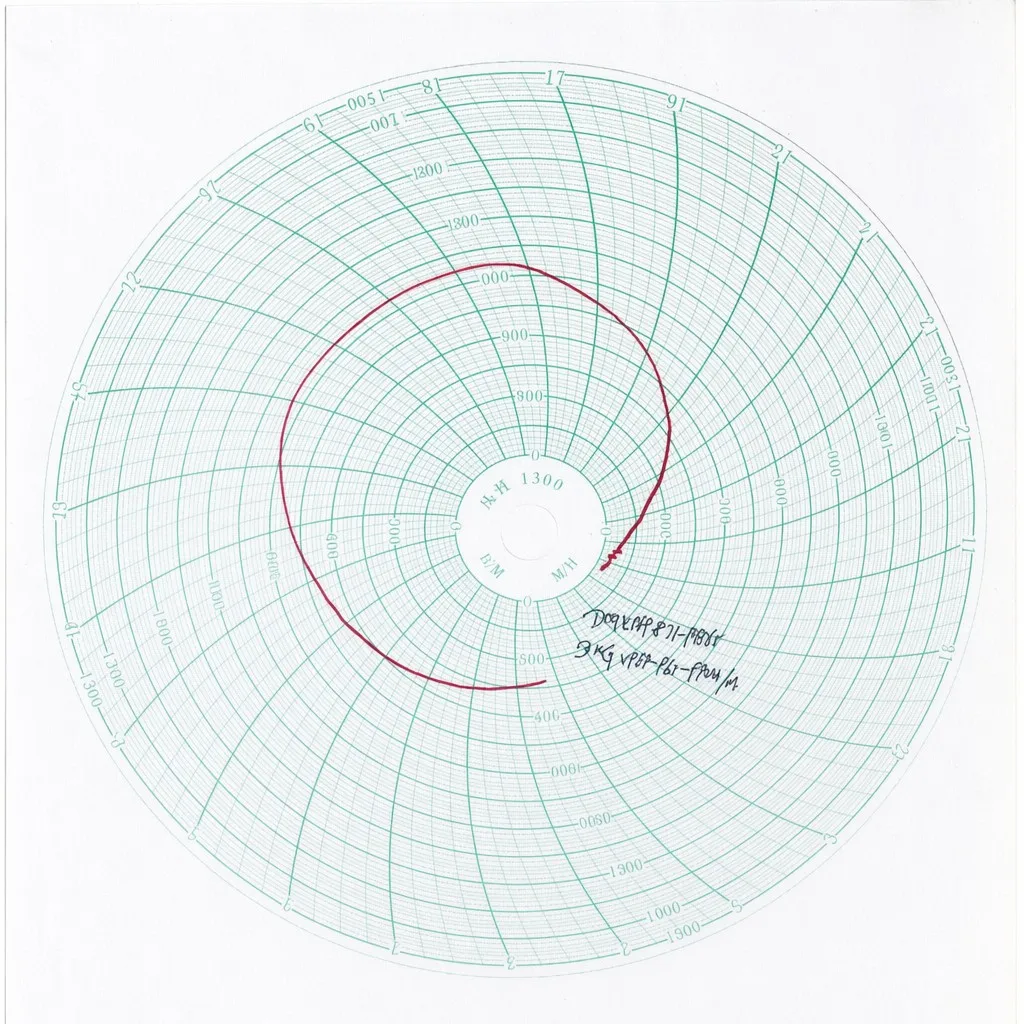

Digital time-temperature curves from each furnace run are reviewed for compliance with specified soak temperature, hold duration, and cooling rate. Any deviation triggers a non-conformance review. The curve joins all other test data in a complete traceability package — from raw material to finished casting.

Slag Pots in Service

In daily operation, a slag pot cycles through four phases: receiving molten slag at 1,300–1,500 °C beneath the furnace tap hole, transport via slag-hauling vehicle or overhead crane, tipping to dump slag at the disposal yard, and returning (often unevenly cooled) for the next cycle. Over a campaign of several thousand heats, the pot wall endures repeated thermal expansion and contraction, chemical erosion from CaO-SiO₂-Al₂O₃-based slags, and mechanical impact.

A well-designed, thoroughly inspected slag pot from Pengxin can achieve 5,000–8,000 heats or more before replacement or major repair. Pengxin slag pots currently serve integrated steel mills, mini-mills, ferroalloy plants, and non-ferrous smelters globally.

Conclusion

Producing a slag pot that survives years of extreme thermal and mechanical stress demands far more than standard foundry practice. At Dandong Pengxin Machinery, every pot is backed by resin sand casting precision, dual-material metallurgical expertise, and a six-point inspection protocol — MT, UT, dimensional verification, mechanical testing, metallography, and heat treatment curve traceability. Whether the application calls for cost-effective QT500-7 ductile iron or high-toughness alloy cast steel, Pengxin engineers slag pots for safety, longevity, and peace of mind on the mill floor.

For slag pot inquiries, material recommendations, or quotations, contact Dandong Pengxin Machinery at john_yu@metals-casting.com or visit www.pengxincasting.com.
