Heavy Mining Electric Rope Shovel & Dragline Castings: High-Strength Steels (ASTM A148 Gr 150-125), Track Shoes, and Boom Point Sheaves

Meta Description: A complete engineering guide to heavy cast steel open-pit mining electric rope shovel and dragline components. Explore ASTM A148 Grade 135-125 / 150-125 alloy cast steels, 1 to 5-ton crawler track shoe pads, 3-meter boom point sheaves, inductive rope groove hardening, and -40°C sub-zero Charpy impact toughness.

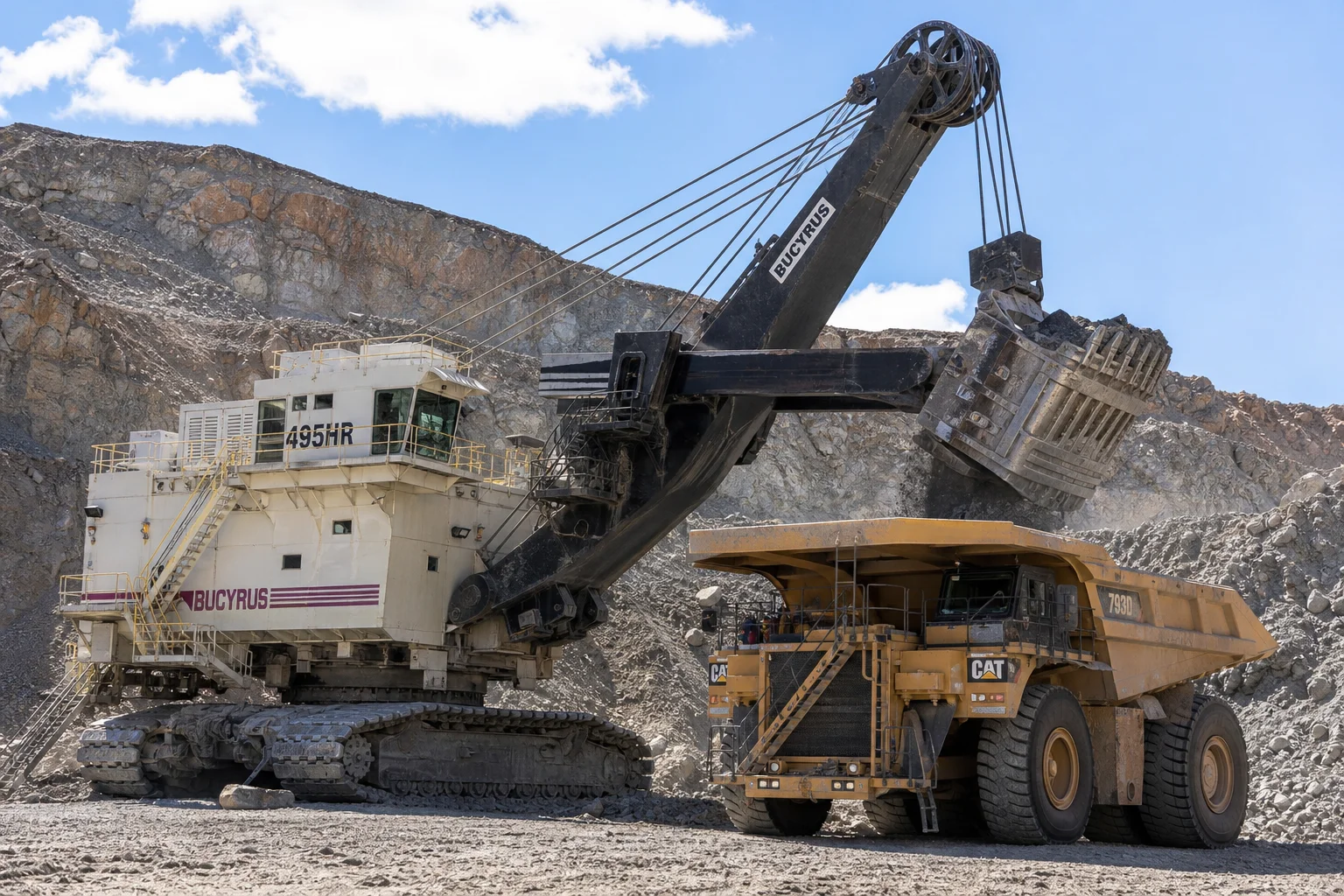

In massive open-pit copper, iron ore, gold, and oil sands mining operations worldwide, ultra-class Electric Rope Shovels (such as CAT 7495, Komatsu P&H 4100XPC) and giant Walking Draglines represent the largest mobile land machines ever constructed. Operating 24/7 in extreme environments:

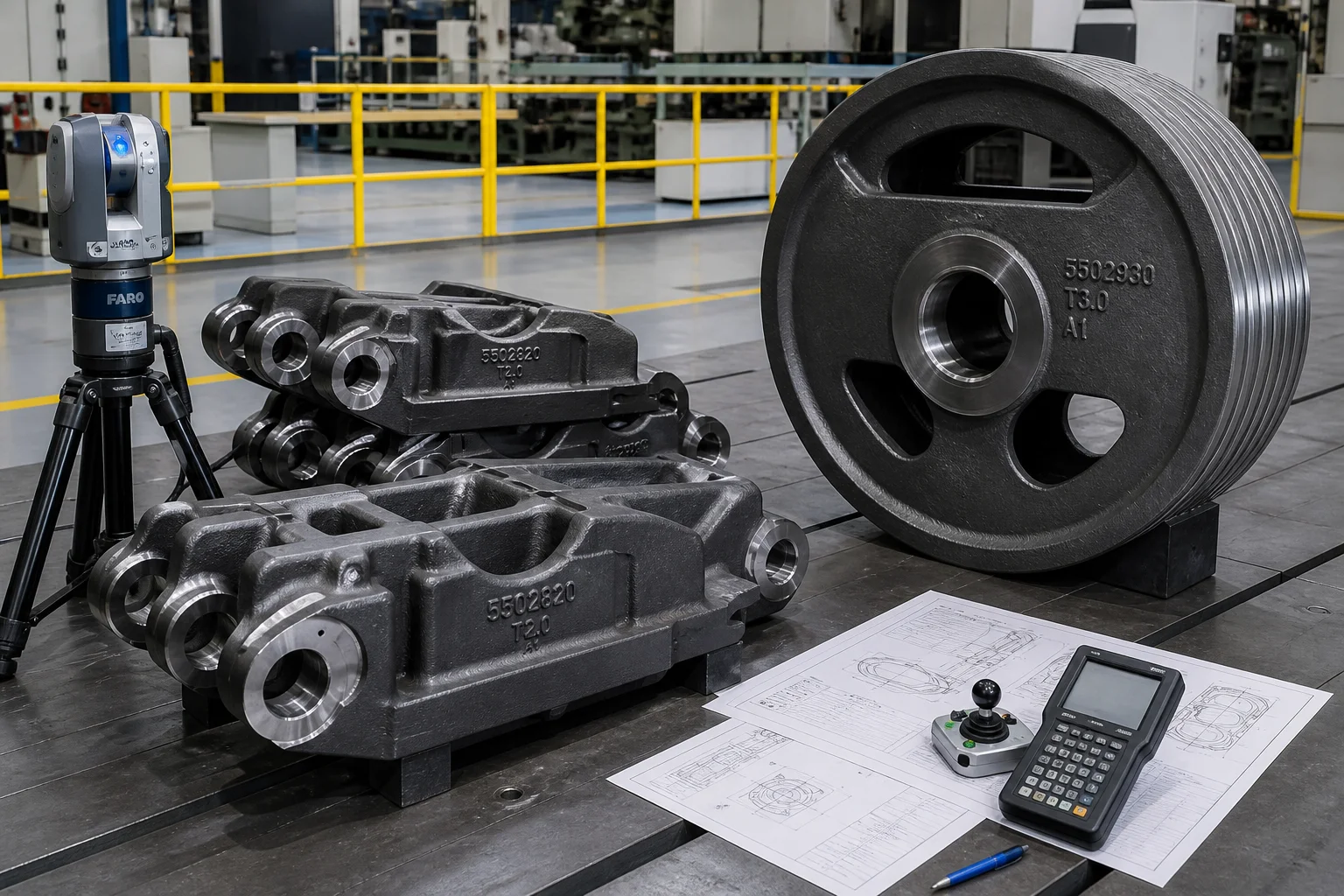

• Electric Rope Shovel Dipper Buckets & Lower Chassis: Capable of single-pass payloads exceeding $100\text{ to }120\text{ metric tons}$100 to 120 metric tons ($45\text{ to }60{\text{ m}}^3$45 to 60 m3), massive cast steel Crawler Track Shoe Pads (weighing 1.2 to 2.8 tons each), Side Frames, Crowd Pinions, Equalizer Beams, and Saddle Blocks endure violent cyclic rock breakout shocks, high-frequency torsional digging reactions, and continuous abrasive rock grinding.
• Giant Dragline & Shovel Boom Point Sheaves: Large 2.5-meter to 4.5-meter diameter cast steel wire rope sheaves carry hoisting wire ropes under multi-thousand-kilonewton tensions ($>4,500\text{ kN}$>4,500 kN), enduring extreme contact wire rope pressure and groove abrasive wear.

Under these punishing conditions, equipment operates in sub-zero Arctic winter temperatures down to $-40\text{ °C}$−40 °C or $-50\text{ °C}$−50 °C. A brittle fatigue fracture in a track shoe link or an un-tempered micro-shrinkage crack in a boom point sheave hub can cause catastrophic boom collapse or shovel immobilization, halting pit haulage fleets and costing over \100,000$ per hour in lost mine production.

Surviving millions of tons of heavy rock extraction demands specialized foundry engineering: casting Ultra-High-Strength Quenched & Tempered Alloy Steels (ASTM A148 Grade 135-125 / Grade 150-125 / 42CrMo4 / 30CrNiMo8) with tensile strengths exceeding $1,035\text{ MPa}$1,035 MPa and guaranteed Charpy impact toughness at $-40\text{ °C}$−40 °C ($\ge 27\text{ to }35\text{ J}$≥27 to 35 J), applying automated Induction Flame Hardening to wire rope grooves (50–55 HRC), executing heavy horizontal CNC in-line pin-hole boring, and verifying 100% volumetric ultrasonic and magnetic particle soundness.

This technical guide provides an exhaustive engineering breakdown of heavy mining cast steel metallurgy, large-scale directional solidification, inductive surface hardening, CNC machining, and rigorous NDT quality assurance.

1. Operating Dynamic Load Fields & Mining Failure Modes

 ┌──────────────────────────────────────────────┐
                     │ Extreme Open-Pit Digging Dynamics (>100 T)   │
                     └──────────────────────┬───────────────────────┘
                                            │
        ┌───────────────────────────────────┼───────────────────────────────────┐
        ▼                                   ▼                                   ▼
┌───────────────────────────────┐ ┌───────────────────────────────┐ ┌───────────────────────────────┐
│ Dynamic Impact Fatigue Shock  │ │ Sub-Zero Arctic Brittle Fract │ │ Wire Rope Groove Severe Wear  │
│ (Cyclic breakout shock loads  │ │ (Loss of impact toughness in  │ │ (High-pressure steel cable    │
│  causing track link fatigue)  │ │  Canadian/Siberian -40 °C pit)│ │  crushing & corrugating rim)  │
└───────────────────────────────┘ └───────────────────────────────┘ └───────────────────────────────┘

2. Ultra-High-Strength Alloy Metallurgy & Chemical Control

To achieve ultra-high tensile strength without sacrificing sub-zero fracture toughness in heavy sections ($100\text{ mm–}300\text{ mm}$100 mm–300 mm wall thickness), foundries deploy Ni-Cr-Mo Heavy Quenched & Tempered Cast Steels:

Critical Metallurgical Control Rules:

1. Nickel Content ($1.5\mathrm{\%}\text{–}3.5\mathrm{\%}\text{ Ni}$1.5%–3.5% Ni): Lowers the ductile-to-brittle transition temperature (DBTT) below $-50\text{ °C}$−50 °C, preventing brittle cleavage failure when track shoes strike frozen iron ore boulders.
2. Vacuum Ladle Degassing (VD): Ultra-low phosphorus ($P\le 0.015\mathrm{\%}$P≤0.015%) and sulfur ($S\le 0.010\mathrm{\%}$S≤0.010%), with dissolved hydrogen $[H]\le 1.5\text{ ppm}$[H]≤1.5 ppm to eliminate internal hairline flaking in thick track pin lugs.

3. Directional Solidification & Heavy Pit Molding

Manufacturing large 3-meter boom point sheaves and heavy track shoes with thick hinge lugs requires rigorous feeding:

┌─────────────────────────────────────────────────────────────┐
│ 1. 3D Precision Master Tooling & Furan Resin Sand Molding   │
│    • Rigid mold compaction eliminates mold dilation under   │
│      heavy ferrostatic liquid steel pressures               │
├─────────────────────────────────────────────────────────────┤
│ 2. CAE Solidification Simulation (MAGMA / ProCAST)          │
│    • Identifies isolated thermal hot spots at track pin lugs │
├─────────────────────────────────────────────────────────────┤
│ 3. Insulated Exothermic Feeder Sleeves over Lug Bosses      │
│    • Feeder Modulus $M_{\text{feeder}} \ge 1.4 \times M_{\text{lug}}$│
│    • 100% sound steel across high-load pin shear planes     │
├─────────────────────────────────────────────────────────────┤
│ 4. Heavy Steel Chills at Interior Radius Transitions        │
│    • Accelerates freezing at deep web-to-flange junctions   │
└─────────────────────────────────────────────────────────────┘

4. Multi-Stage Q&T Heat Treatment & Inductive Surface Hardening

As-Cast Heavy Mining Steel Component
                │
                ▼
┌────────────────────────────────────────────────────────┐
│ 1. High-Temperature Homogenizing (900 °C – 940 °C)     │
│    (Dissolves coarse dendritic segregation networks)   │
└───────────────┬────────────────────────────────────────┘
                │
                ▼  High-Agitation Polymer / Water Quench
┌────────────────────────────────────────────────────────┐
│ 2. Severe Quenching (Rapid Heat Extraction)            │
│    (Achieves 100% fine Martensite across full section) │
└───────────────┬────────────────────────────────────────┘
                │
                ▼
┌────────────────────────────────────────────────────────┐
│ 3. High-Temperature Tempering (580 °C – 640 °C)        │
│    (Relieves stresses; locks in Rm >= 1035 MPa,        │
│     with Charpy CVN >= 35 J at -40 °C)                 │
└───────────────┬────────────────────────────────────────┘
                │
                ▼
┌────────────────────────────────────────────────────────┐

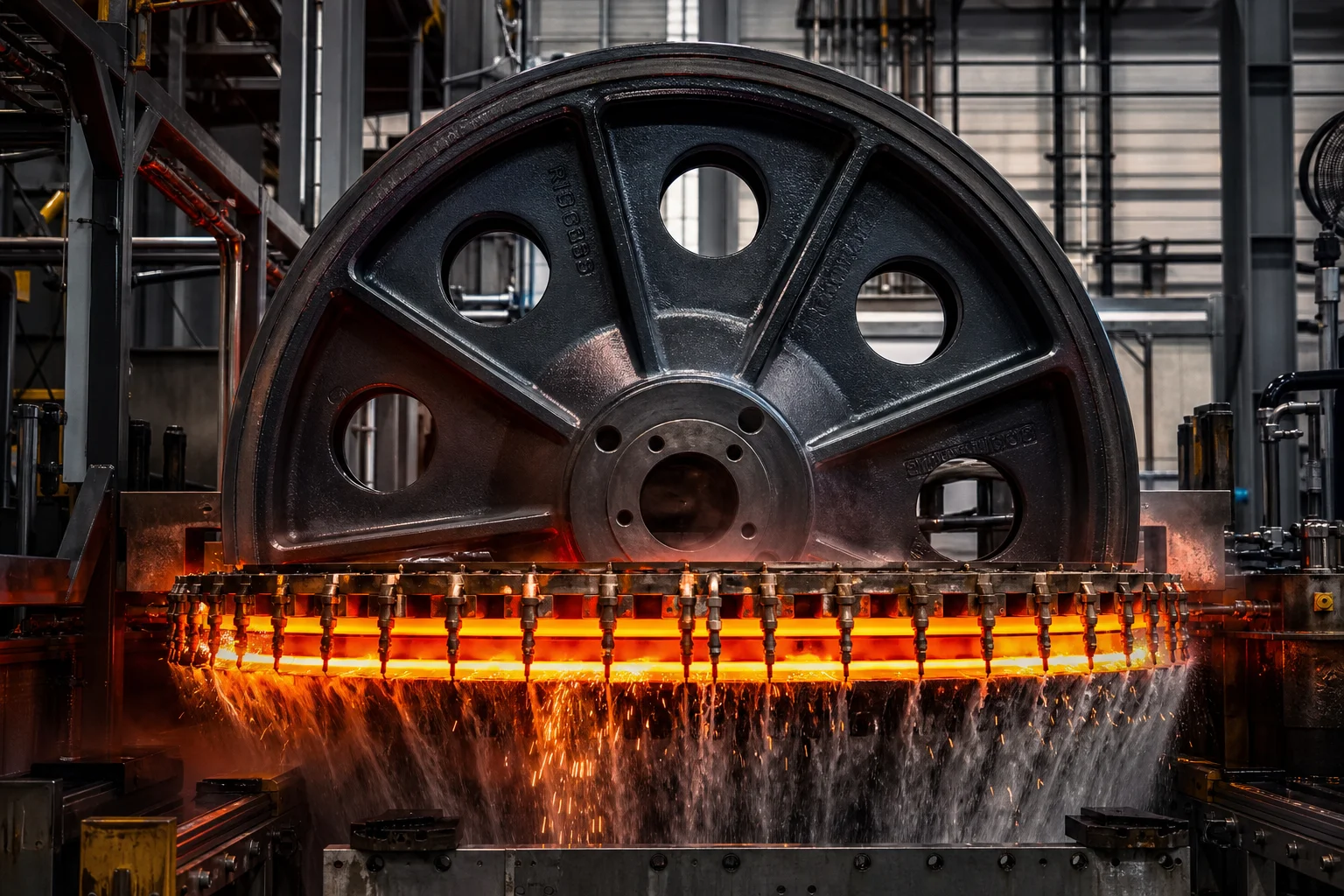

│ 4. Induction Hardening of Sheave Rope Grooves          │
│    • Medium-frequency induction coil heats groove rim  │
│    • Integral water quench locks in 50 – 55 HRC        │
│      case depth of 6.0 – 10.0 mm; core remains tough   │
└────────────────────────────────────────────────────────┘

5. Heavy-Duty Horizontal CNC Pin-Hole Boring & Sheave Turning

Track pad assembly and sheave runout dictate crawler chain life and wire rope longevity:

Precision CNC Operations:

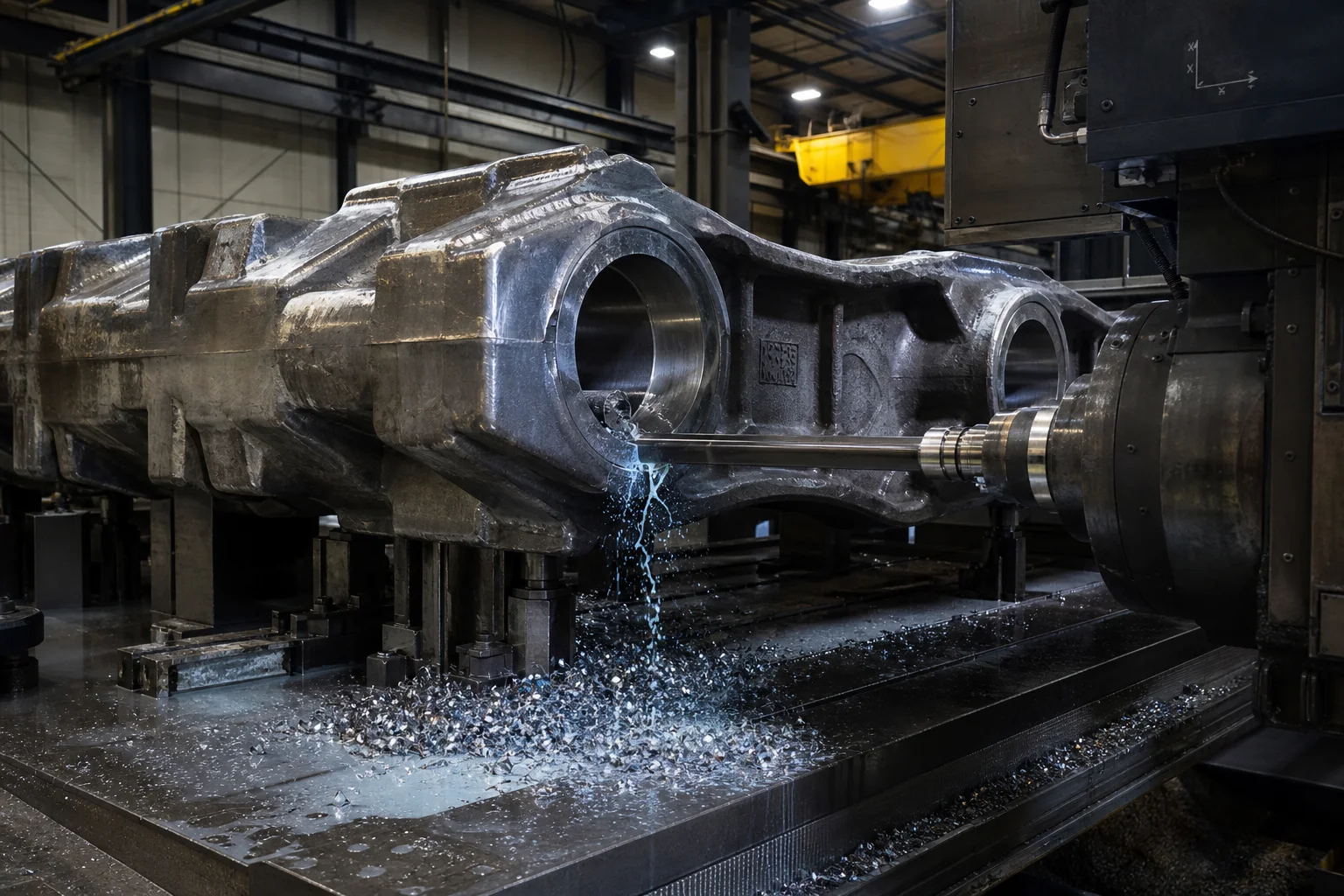

1. In-Line Horizontal Boring of Track Pin Hinge Lugs: Both drive lugs and idler pin holes are bored in a single clamping setup across a 2.5-meter track shoe width. Pin hole center-to-center pitch is held within $\pm 0.35\text{ mm}$±0.35 mm, with hole coaxiality $\le 0.030\text{ mm}$≤0.030 mm.
2. Vertical CNC Turning of Sheave Rope Grooves: Large 5-meter CNC vertical turning lathes machine the wire rope groove radius (per ISO 4308 / API 9A wire rope standards), holding groove runout within $\le 0.050\text{ mm}$≤0.050 mm.

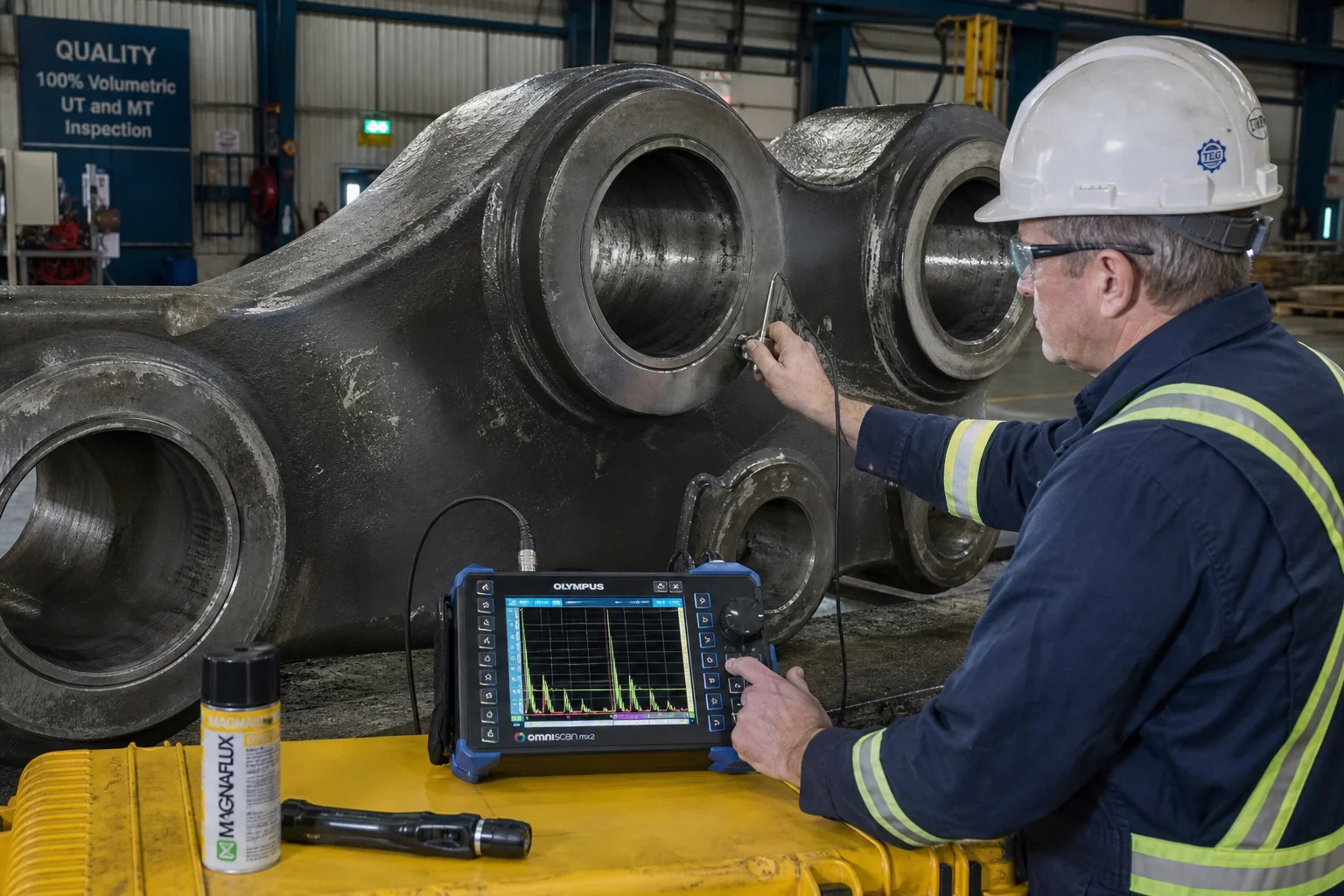

6. Comprehensive Quality Assurance & Acceptance Standards

7. Heavy Mining Casting Capabilities at Dandong City Pengxin Machinery Co., Ltd.

Manufacturing heavy mining shovel track pads, boom point sheaves, and dragline equalizer beams requires heavy foundry infrastructure, high-alloy melting, computerized heat treatment, and heavy CNC boring mills.

Dandong City Pengxin Machinery Co., Ltd. delivers fully certified, turnkey finished heavy mining shovel and dragline castings:

• Ultra-High-Strength Mining Alloys: Certified casting of ASTM A148 Grade 115-95, Grade 135-125, Grade 150-125, 42CrMo4, and high-impact manganese steels (ASTM A128).
• Heavy Tonnage Production Infrastructure: 80,000 m² facility with dual overhead cranes capable of pouring single alloy steel castings from 500 kg up to 25 tons.
• In-House Medium-Frequency Induction Hardening: Dedicated automated induction hardening equipment delivering 50–55 HRC wire rope grooves up to 5 meters in diameter.
• Heavy Horizontal CNC Boring Centers: Multi-axis floor-type horizontal boring mills delivering single-setup in-line track pin holes with coaxiality $\le 0.030\text{ mm}$≤0.030 mm.
• Complete Quality Certification: ISO 9001 certified, providing full EN 10204 3.1 & 3.2 material test certificates, $-40\text{ °C}$−40 °C Charpy impact logs, and 100% UT/MT reports.

Conclusion

Heavy mining electric rope shovel and dragline castings operate under the world's most violent combinations of dynamic rock impact, high-cycle fatigue, wire rope abrasive wear, and Arctic $-40\text{ °C}$−40 °C freezing temperatures. Ensuring non-stop pit productivity demands ultra-clean Ni-Cr-Mo alloy steel metallurgy (ASTM A148 Gr 150-125), disciplined Q&T heat treatment, precision inductive rope groove hardening, precision CNC in-line pin boring, and 100% volumetric NDT verification.

Partnering with an experienced, integrated heavy casting and precision machining powerhouse ensures that your open-pit mining shovels and draglines dig deeper, run longer, and deliver maximum tons per operating hour.

Contact Dandong City Pengxin Machinery Co., Ltd. to submit your mining shovel or dragline casting drawings.

Dandong City Pengxin Machinery Co., Ltd. — Heavy Castings and Precision Machining, Since 1958.
